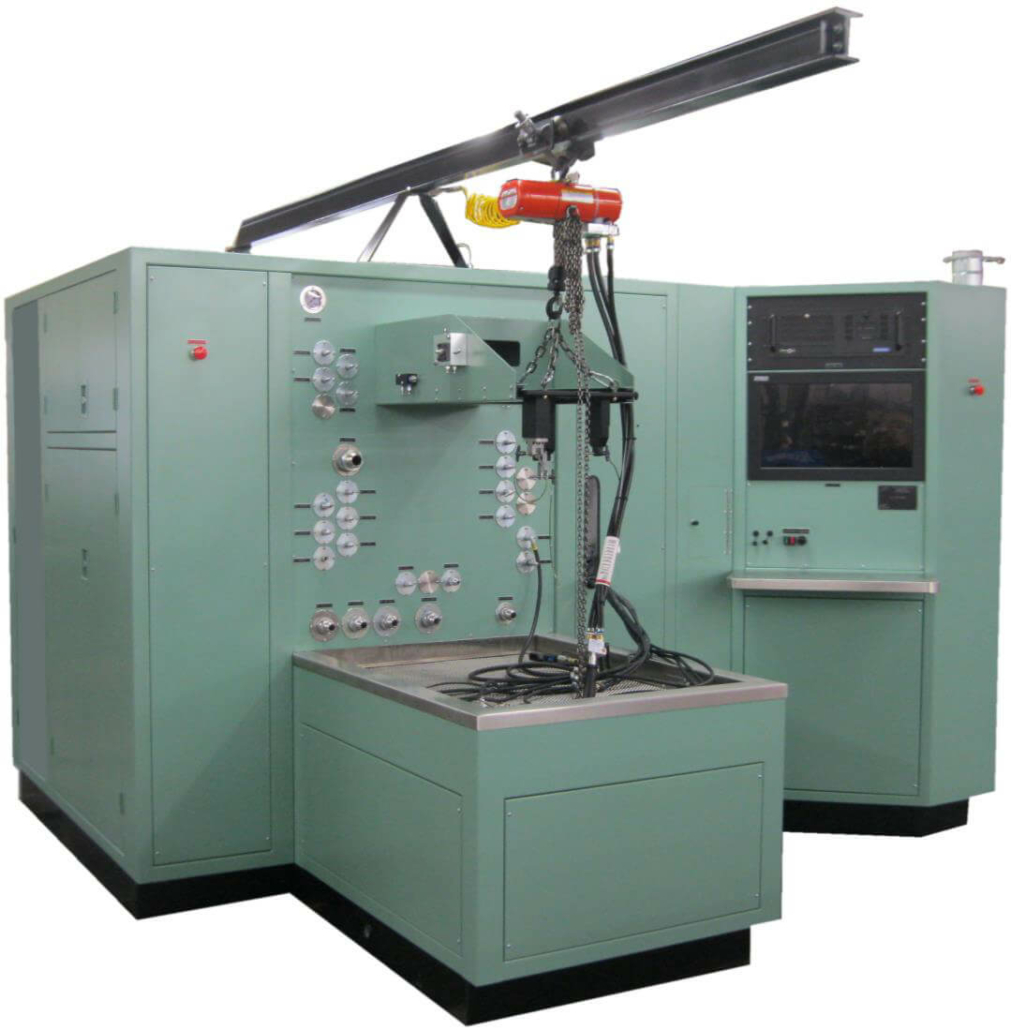

F100-220 AFC Test Stand Model D39391

This test stand is designed for carrying out test and maintenance procedures on Augmentor Fuel Control (AFC) units. Testing is semi-automated via integral Data Acquisition and Control System. Fluid power pack is remotely mounted for sound and floor space considerations.

Product Features

This test stand has been specifically designed and built for the purpose of functionally testing and adjusting new or overhauled Augmentor Fuel Control (AFC) Models 441418 and 441422 for the F100-220 engine.
REQUEST QUOTE ASK AN EXPERT
Category: Tags: ,

Additional information

Physical dimensions

Length: 123 in [312cm]
Width: 91 in [231cm]
Height: 94 in [239cm]
Weight

Approx. 10,000 Lbs.
Mechanical/Electrical Requirements:

Electrical: @ 440 Volts, 50 Hz, 3 Phase, 40 Amps
Shop Air: 10-20 SCFM @ 80-110
PSI High Pressure Air: 5-10 SCFM @ 450 PSI

Literature

F100-220 AFC Test Stand Model D39391 (pdf)
