Nozzle and Manifold Test Stand Model D38758

The test stand is designed for carrying out test procedures on various fuel nozzles and nozzles manifolds. The instrumentation of the stand measures the different parameters of the test: fuel pressures, fuel flows, fuel temperatures as well as qualitative and quantitative analysis of nozzle spray patterns.

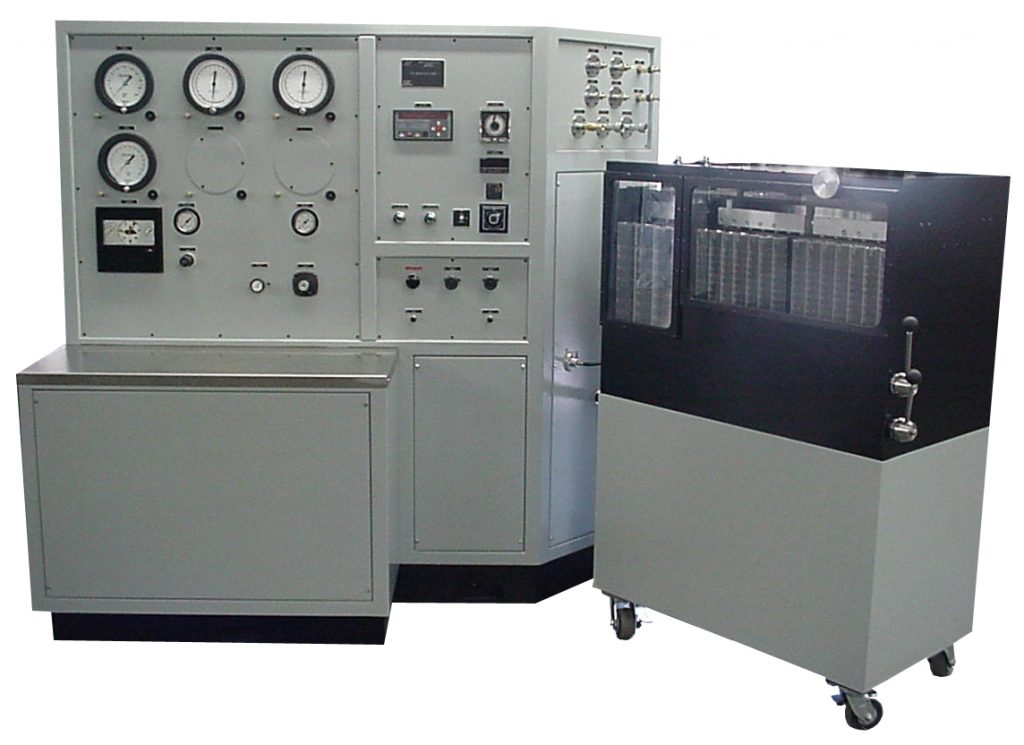

The stand consists of 2 major sections:

  • The Console
  • The Portable Nozzle Box

For more information please write us at sales@staleyco.com

Or you can send us a quote request directly and we will consult you on our products.

Category:

Additional information

Width

109 inches

Depth

60 inches

Height

78 inches

Weight

Weight: Approximately 4000 lbs.

Fluid

MIL-C-7024C, 30 gal capacity

Max Pressure

1000 PSIG

Max Flow

3,000 PPH
