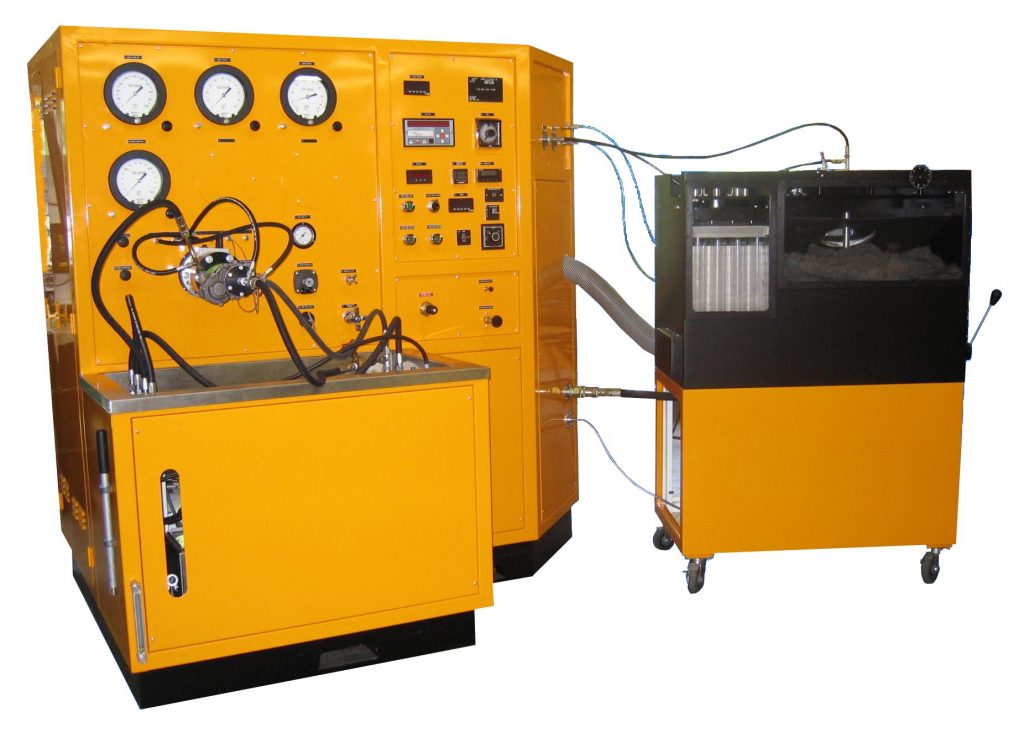

T-58 Fuel Test Stand Model D39078

The test stand is designed to test the following T-58 components:

  • Centrifugal purifier p/n 4005T01P02
  • Fuel pump p/n 5001T29P01
  • Fuel manifold p/n 4002T23G03
  • Pilot valve p/n 37E500059G006
  • Stator vane p/n 37D400352G003

The test stand is designed to test the following T-58 components:

  • The stand consists of 3 sections:
    • the main test console
    • the portable nozzle box
    • the remotely located drive control box

For more information please write us at sales@staleyco.com

Or you can send us a quote request directly and we will consult you on our products.

Category:

Additional information

Width

109 inches

Depth

66 inches

Height

78 inches

Weight

Weight: Approximately 3500 lbs.

Fluid

MIL-C-7024C, 30 gal capacity

Max Pressure

750 PSIG

Max Flow

8.2 GPM

Electrical Service

460 Volts, 60 Hz, 3 phase
