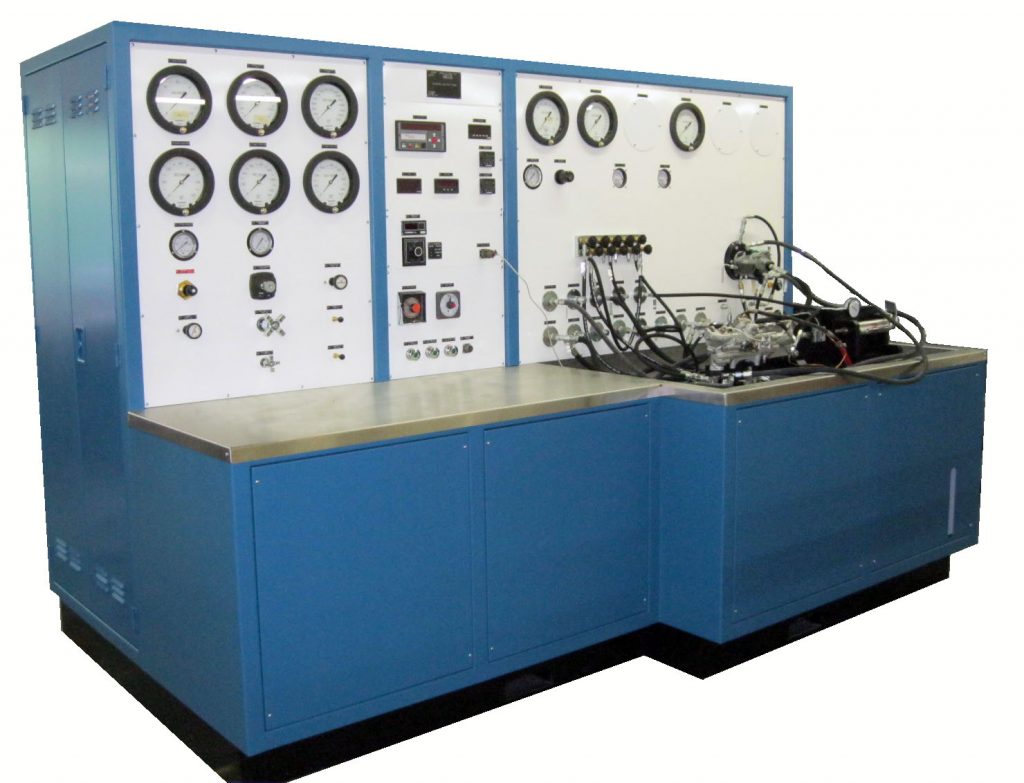

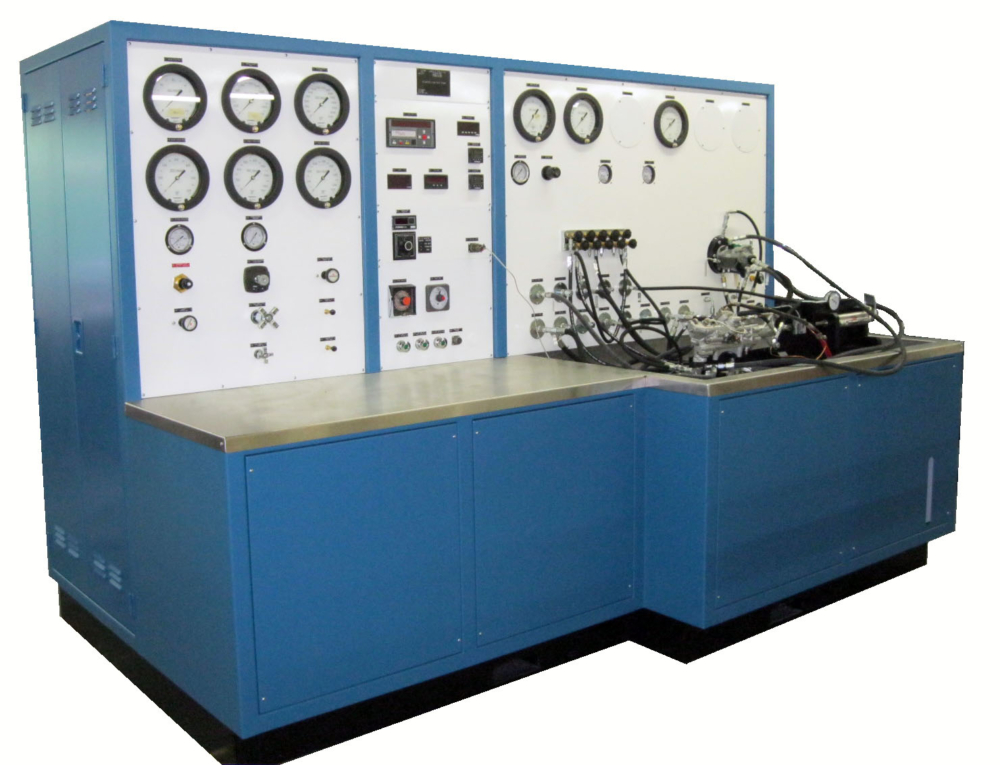

Actuator/ACA Test Stand Model D38810A

The Actuator/ACA Test Stand is capable of carrying out testing and maintenance procedures on various actuators and ACAs. The test stand features variable fuel temperature control, the fuel temperature is automatically controlled by the air operated temperature controller. The adjustable temperature range is from 0 to 150°.


For more information please write us at sales@staleyco.com

Or you can send us a quote request directly and we will consult you on our products.

Category:

Additional information

Width

116 inches

Depth

72 inches

Height

78 inches

Weight

Approximately 4000 lbs.

Fluid

MIL-PRF-7024, 20 gal capacity

Tank capacity

20 gal, Type II calibrating fluid (Mil-C-7024C)

Max Pressure

3200 PSIG

Max Flow

8 GPM

Drive motor

3 HP, 6500 RPM

Electrical service

460V, 3PH, 60HZ, 32 KVA
