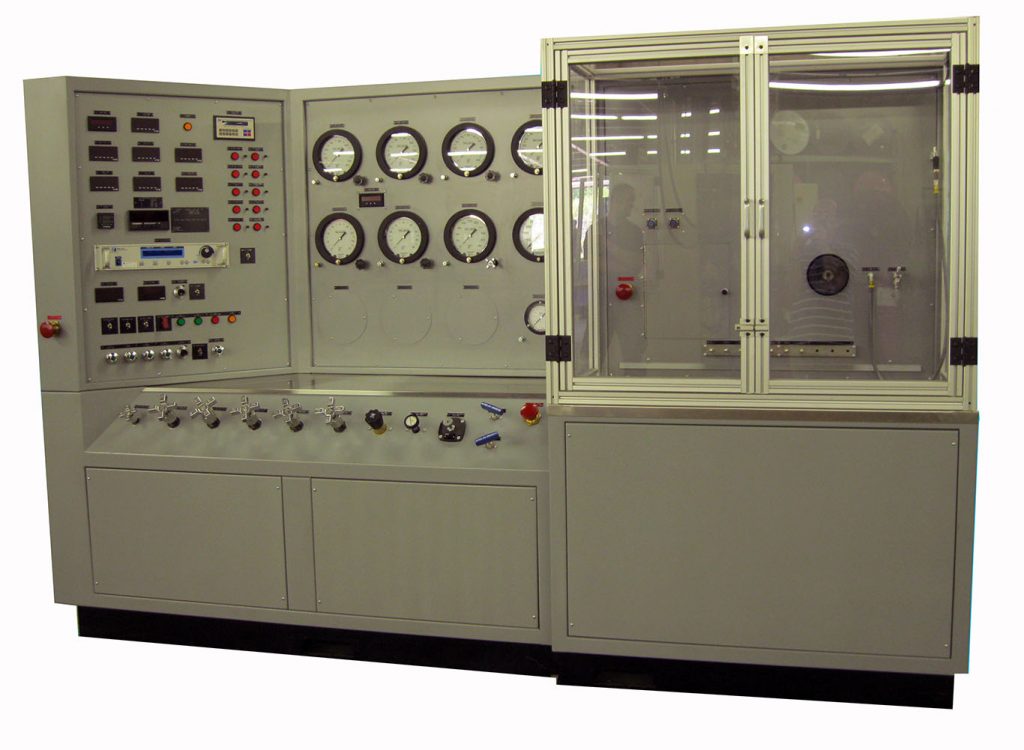

Pitchlock Regulator T/S Model D39068

The Pitchlock Regulator Test Stand provides Red Oil testing capability to test various Pitchlock Regulators. The test stand provides a maximum pressure of 5,000 PSIG and a maximum flow of 60 GPM.

The instrumentation of the stand measures the different parameters of the test:

  • Oil Pressure
  • Oil Flow
  • Temperature
  • Speed
  • Current
  • Voltage
  • Torque




For more information please write us at sales@staleyco.com

Or you can send us a quote request directly and we will consult you on our products.

Category:

Additional information

The test stand is designed to test the following components

Pitch Lock Regulators:
558279 03-20CBBK-1 & -2
782369-1 03-20CBBK-1 & -2
767999-2 03-20CBBJ-1 & -2

Auxiliary Motor 56020 03-20CED-2

Flow Switch 582460 03-20CFA-1 &-2

Width

120 inches

Depth

78 inches

Height

136 inches

Weight

Approximately 5000 lbs.

Fluid

MIL-H-5606 (Red Oil) 100 gal capacity

Max Pressure

5,000 PSIG

Max Flow

60 GPM
