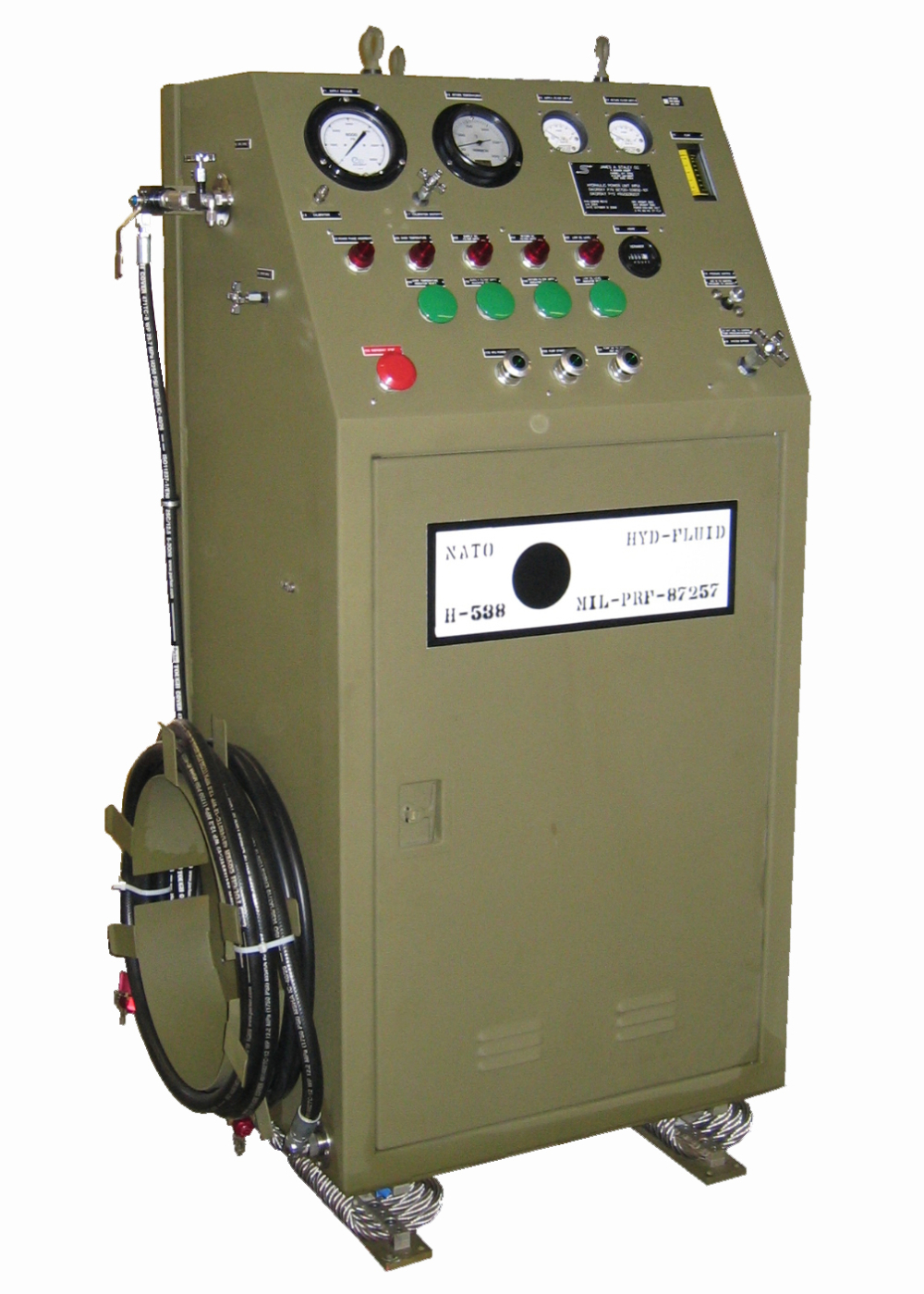

The Hydraulic Power Unit is designed to supply a high-pressure source of clean hydraulic fluid at the desired flow, temperature and pressure. The HPU is of welded steel monocoque construction and mounted on a steel isolators bolted to a ship’s floor and wall.
| Width | 30-1/2 inches |
|---|---|
| Depth | 24-1/2 inches |
| Height | 69 inches |
| Weight | Approximately 1330 lbs. (with fluid) |
| Oil System (fluid): | MIL-PRF-87257 |
| Max Pressure | 4250 psig |
| Motor characteristics | 20 hp, 1800 rpm |
| Electrical service | 440 V, 3 phase, 60 Hz |
