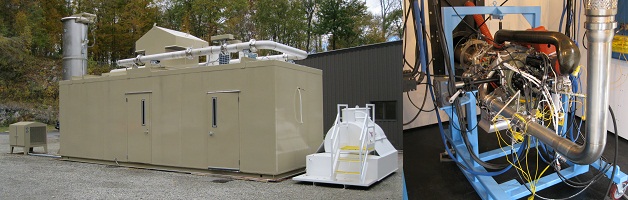

This is a modular building with separate rooms for unit testing (which includes a CO2 fire suppression system) and, a soundproof operator PLC control/monitoring equipment room. An integrated exhaust stack, remote load bank and fuel storage cell completes the system.

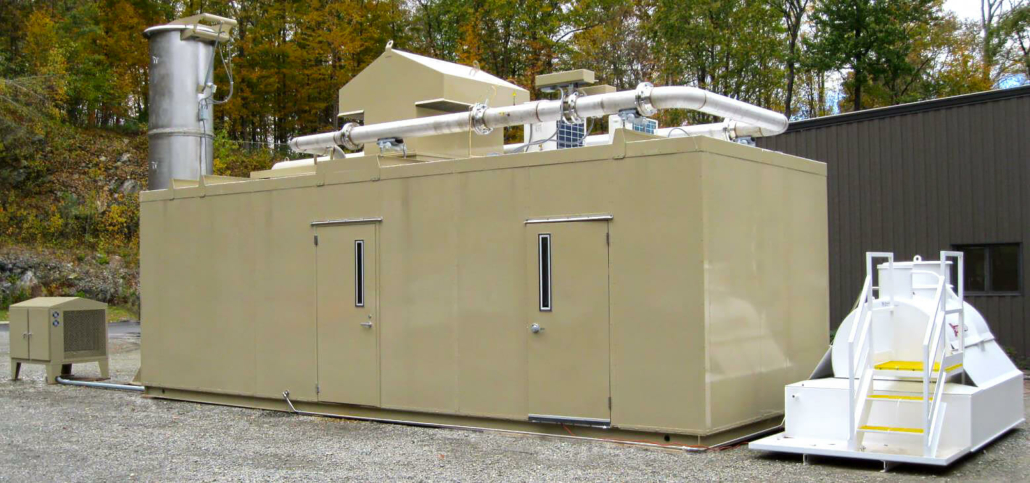

The test cell is an assembly that consists of the test cell building (divided into test cell area and control room via insulated panels/viewing window), fuel tank, exhaust stack and load bank. Bleed measurement section and inlet are mounted on the roof. The building is a modular unit fabricated on a steel base with insulated panels.
Engines this test cell will support:
Note: Other engines of comparable type and size may also be tested
Honeywell Licensed Test Cell Manufacturer (TCM)
|Physical dimensions: Building||
Length: 360.0 in [914cm] with stack 445 in. [1,130cm]
Electrical @ 380 VAC, 50 Hz, 3 PH, 50 KVA
