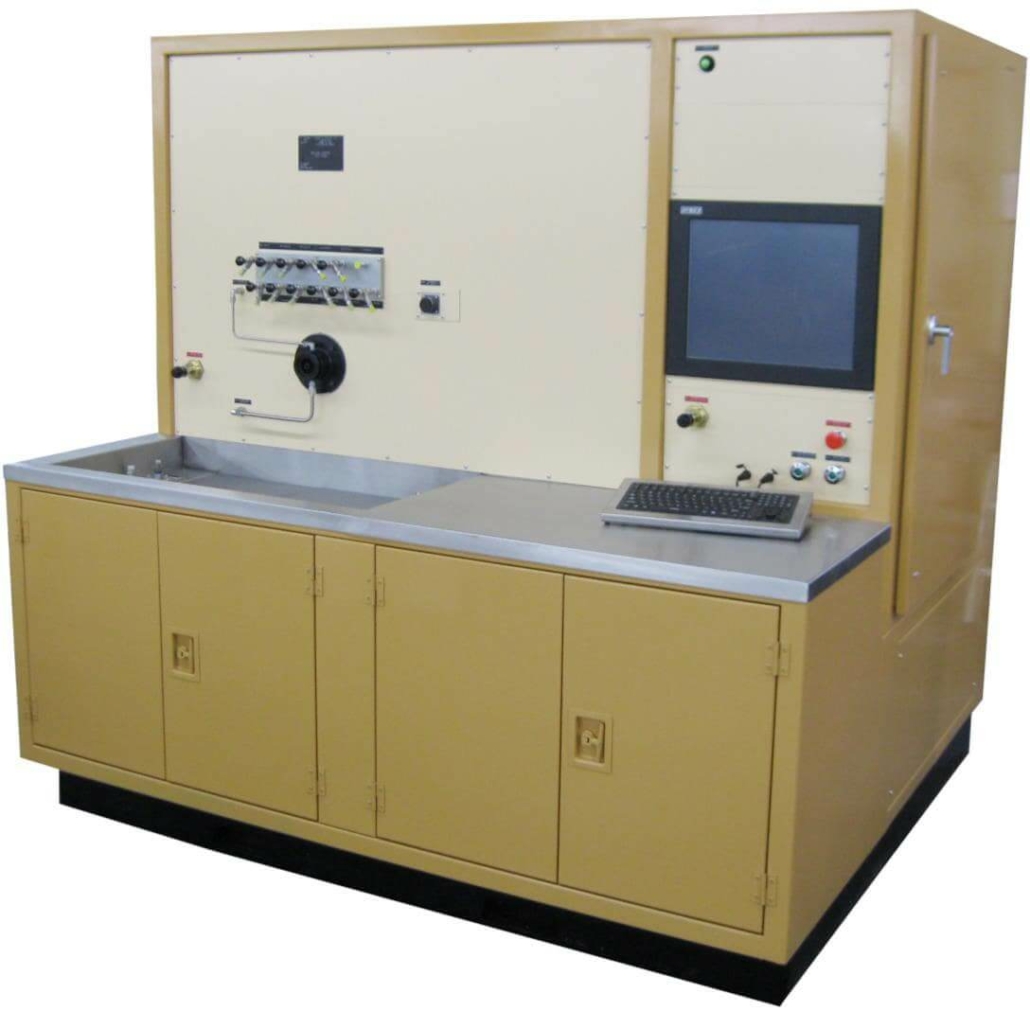

APU FCU Test Stand Model D39402

The D39402 APU Fuel Control Unit Test Stand is designed to facilitate the testing of APU Fuel Control model numbers CU-C1, CU-B1, and CU-B2. Testing is semi-automated via integral Data Acquisition and Control System.
(DACS)

Product Features

CU-C1, CU-B1, and CU-B2 APU Fuel Control Units

REQUEST QUOTE ASK AN EXPERT
Category: Tag:

Additional information

Physical dimensions

Length: 80.0 in [203cm]
Width: 70.0 in [178cm]
Height: 78.0in [198cm]
Mechanical/Electrical Requirements

Shop air @ 80-120 PSIG ~ 15 SCFM
Fuel supply @ 1500 PSIG ~ 3000 PPH
Electrical @ 460V / 60 Hz ~ 30 Amps
Drive/motor parameters:

Horsepower: 20HP
Base Speed: 12,000 RPM
Power: 460V/60Hz/3PH
Media/fluid Requirements

Test condition fluid: MIL-PRF-7024 TYPE II

Literature

APU FCU Test Stand Model D39402 (pdf)
