Fuel Nozzle Test Stand Model D39095

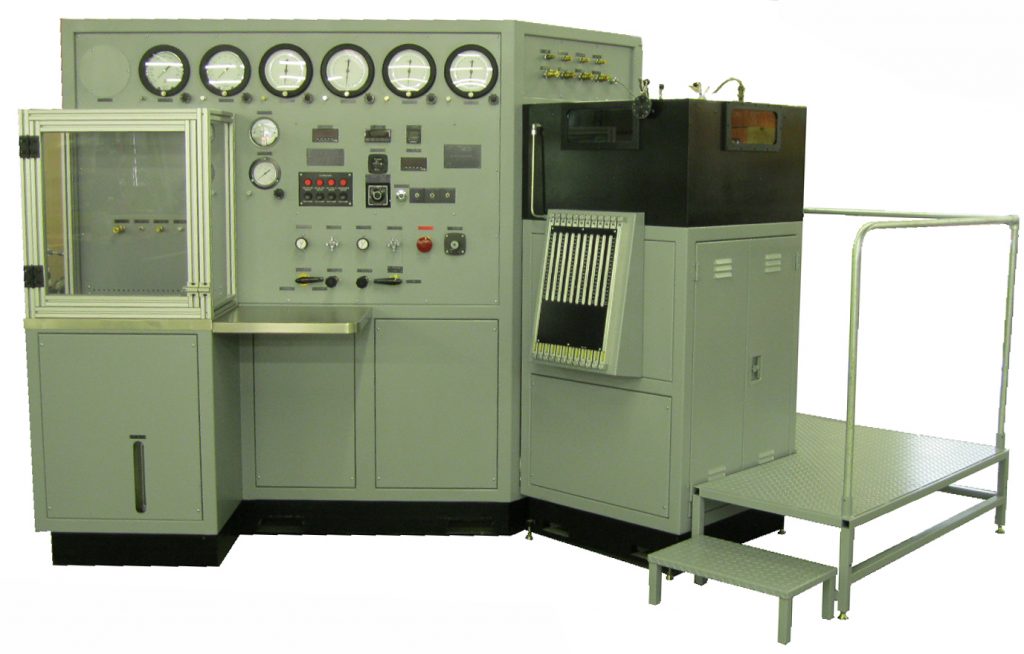

The test stand is designed for carrying out test procedures on fuel nozzles. The instrumentation of the stand measures the different parameters of the test: fuel pressures, fuel flows, temperatures as well as qualitative and quantitative analysis of nozzle spray patterns. An enclosed sink is built into the left side of the stand containing fuel, air and gauge ports.

On the right end of the stand the nozzle box is placed. It has an illuminated spray chamber equipped with a 12-segment patternator, manual and digital spray angle protractors, forced air venting and two viewing windows. An annunciator warns the operator of any major failure such as a low fuel level, fuel over temperature, etc.


For more information please write us at sales@staleyco.com

Or you can send us a quote request directly and we will consult you on our products.

Category:

Additional information

Width

110 inches

Depth

64 inches

Height

78 inches

Weight

Approximately 4000 lbs.

Fluid

MIL-C-7024C, 20 gal capacity

Max Pressure

1500 PSIG

Max Flow

6 GPM
